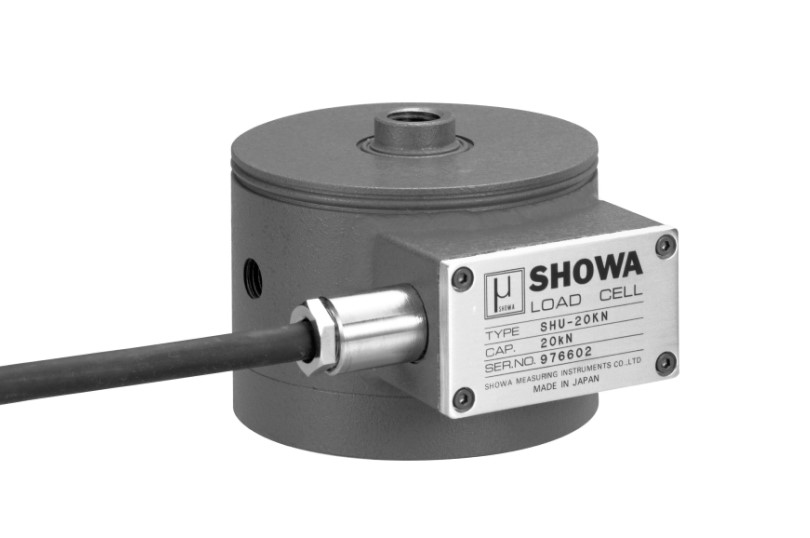

SHU-A

Features

High-precision tensile and compression type
Inert gas-filled, fully sealed welded construction
Excellent eccentricity and fatigue resistance characteristics
Widely used in fatigue testing machines and industrial machinery
Accuracy class: 0.03 %

Appearance Dimensions

Model name and rated capacity, dimensions (in mm), natural frequency and mass

Model	Capacity	A	B	C	D	E	F	G	H	J	Natural frequency	Weight
SHU-10KNA	10 kN	80	100	22	72	42	78	M12×1.75depth20	80	M8深12	6.0 kHz	3.2 kg
SHU-20KNA	20 kN	80	100	22	72	42	78	M16×2depth20	80	M8深12	8.6 kHz	3.2 kg
SHU-50KNA	50 kN	95	125	34	85	52	94	M24×2depth30	95	M8深15	6.4 kHz	6.8 kg
SHU-100KNA	100 kN	135	160	48	120	75	114	M36×2depth45	120	M8深15	5.9 kHz	16 kg
SHU-200KNA	200 kN	175	200	65	155	100	136	M48×3depth60	160	M8深15	4.9 kHz	34 kg
SHU-500KNA	500 kN	270	310	105	250	165	192	M80×3depth90	230	M16深30	4.0 kHz	135 kg
SHU-1MNA	1 MN	330	400	150	310	210	239	M110×4depth110	300	M16深40	3.5 kHz	280 kg

※Test reports for rated capacities of 200 kN, 500 kN and 1 MN are for compression calibration data only. (Tensile data is available on request).
※For confirmation of items not listed, please refer to the operating instructions or contact the company.
※All products are made to order.

Specifications

Safe Overload	150 ％R.C.
Rated Output	2 mV/V±1 ％
Nonlinearity	0.03 %R.O.
Hysteresis	0.03 %R.O.
Repeatability	0.02 %R.O.
Excitation Voltage	12 V 以内
Safe Excitation Voltage	20 V
Input Rsistance	350 Ω
Output Rsistance	350 Ω
Compensated Temp.Range	－10～60 ℃
Safe Temp.Range	－30～80 ℃
Temp.Effect on Zero	0.002 %R.O./℃
Temp.Effect on Output	0.002 %/℃
Cable	Φ8 mm – 6-conductor shielded cable 5 m, bare end
