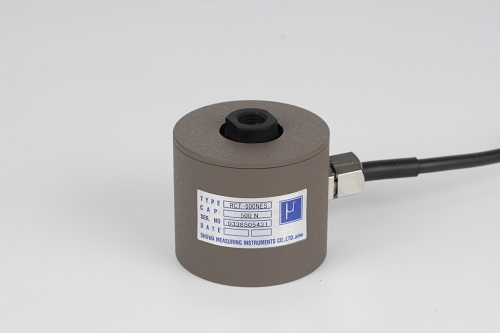

RCT-E
-
Features
- Covering wide capacity ranges (10N to 5kN).
- High accuracy and small size. For both tension and compression applications.
- Excellent in deflection-proof characteristics (Maximum falling out distance: 25 mm).
- Maximum difference in output between tension and compression detection: Within 0.1%.
- Most suitable for use in high accuracy test and inspection equipment.
- Accuracy class: 0.05%.
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit : mm)
| Model | Capacity | A | B | C | D | E | F | G | H | J | Natural frequency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RCT-10NE | 10 N | 57 | 60 | 20 | 52 | 5 | 25 | M12*1.5,15 deep | 52 | M4,7 deep | 0.16Hz | 0.6 kg |
| RCT-20NE | 20 N | 57 | 60 | 20 | 52 | 5 | 25 | M12*1.5,15 deep | 52 | M4,7 deep | 0.27Hz | 0.6 kg |
| RCT-50NE | 50 N | 70 | 70 | 20 | 65 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 0.38Hz | 1.1 kg |
| RCT-100NE | 100 N | 70 | 70 | 20 | 65 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 0.51Hz | 1.1 kg |
| RCT-200NE | 200 N | 70 | 70 | 20 | 65 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 0.72Hz | 1.1 kg |
| RCT-500NE | 500 N | 70 | 70 | 20 | 65 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 1.1Hz | 1.1 kg |
| RCT-1KNE | 1 kN | 70 | 70 | 20 | 65 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 1.7Hz | 1.1 kg |
| RCT-2KNE | 2 kN | 70 | 70 | 20 | 65 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 1.8Hz | 1.2 kg |
| RCT-5KNE | 5 kN | 80 | 70 | 20 | 75 | 5 | 35 | M12*1.5,20 deep | 60 | M6,11 deep | 1.9Hz | 1.6 kg |
Specifications
| Safe Overload | 150 ％R.C. |
|---|---|
| Rated Output | 1.5 mV/V±1 ％ |
| Nonlinearity | 0.05 %R.O. |
| Hysteresis | 0.05 %R.O. |
| Repeatability | 0.03 %R.O. |
| Excitation Voltage | 12V (or less) |
| Safe Excitation Voltage | 20 V |
| Input Rsistance | 350 Ω |
| Output Rsistance | 350 Ω |
| Compensated Temp.Range | －10～60 ℃ |
| Safe Temp.Range | －30～80 ℃ |
| Temp.Effect on Zero | 0.005 %R.O./℃ |
| Temp.Effect on Output | 0.005 %/℃ |
| Cable | Φ6mm-4wire shielded cable, length : 5m |
| Attached connector | PRC03-12A10-7M |
