RCT
-
Features
- High capacity and for versatile applications.
- Easy to handle because of its small size and light weight.
- Supplied with an inspection data sheet to both tension and compression directions (excluding some rated capacities).
- Most suitable for measuring traction force in construction or agricultural machines.
- Accuracy class: 0.2%.

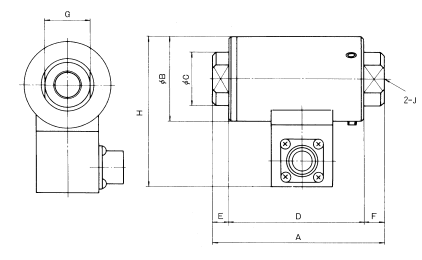

Appearance Dimensions
Model and Capacity / Dimension / etc. (unit : mm)
| Model | Capacity | A | B | C | D | E | F | G | H | J | Natural frequency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RCT-10KN | 10 kN | 83 | 41 | 24 | 65 | 8 | 10 | 22 | 74 | M12*1.5,15 deep | 8.2Hz | 0.7kg |
| RCT-20KN | 20 kN | 98 | 50 | 29.5 | 73 | 11 | 14 | 26 | 83 | M14*1.5,15 deep | 9.2Hz | 1.1kg |
| RCT-50KN | 50 kN | 152 | 52 | 44.5 | 85 | 36 | 31 | 41 | 85 | M18*1.5,22 deep | 6.3Hz | 1.6kg |
| RCT-100KN | 100 kN | 200 | 70 | 59 | 110 | 47 | 43 | 4-Φ8 注1 | 103 | M40*1.5,45 deep | 5.3Hz | 2.6kg |
| RCT-200KN | 200 kN | 270 | 96 | 84 | 145 | 65 | 60 | 4-Φ10 注1 | 129 | M54*2,65 deep | 3.8Hz | 8.5kg |
| RCT-500KN* | 500 kN | 420 | 146 | 129 | 220 | 102 | 98 | 4-Φ15 注1 | 175 | M84*2.5,100 deep | 2.5Hz | 22kg |
| RCT-1MN* | 1 MN | 560 | 195 | 174 | 290 | 140 | 130 | 4-Φ20 注1 | 225.5 | M110*3,130 deep | 2.3Hz | 70kg |
※Size “G”(Spanner hanging device): The size “G” for capacities exceeding 100 kN represents the hole diameter for the purpose of spanner hanging.
※Confirmation to undescribed items to be made with reference to descriptions on instruction manuals or directly to this Company.
※Items with Marks (※1) are produced only on order placed.
Specifications
| Safe Overload | 150 ％R.C. |
|---|---|
| Rated Output | 1.5 mV/V±1 ％ |
| Nonlinearity | 0.2 %R.O. |
| Hysteresis | 0.2 %R.O. |
| Repeatability | 0.1 %R.O. |
| Excitation Voltage | 12 V 以内 |
| Safe Excitation Voltage | 20 V |
| Input Rsistance | 350 Ω |
| Output Rsistance | 350 Ω |
| Compensated Temp.Range | －10～60 ℃ |
| Safe Temp.Range | －30～80 ℃ |
| Temp.Effect on Zero | 0.01 %R.O./℃ |
| Temp.Effect on Output | 0.01 %/℃ |
| Connector(on body) | PRC03-21A10-7F |
| Attached cable | L-A-5 |
