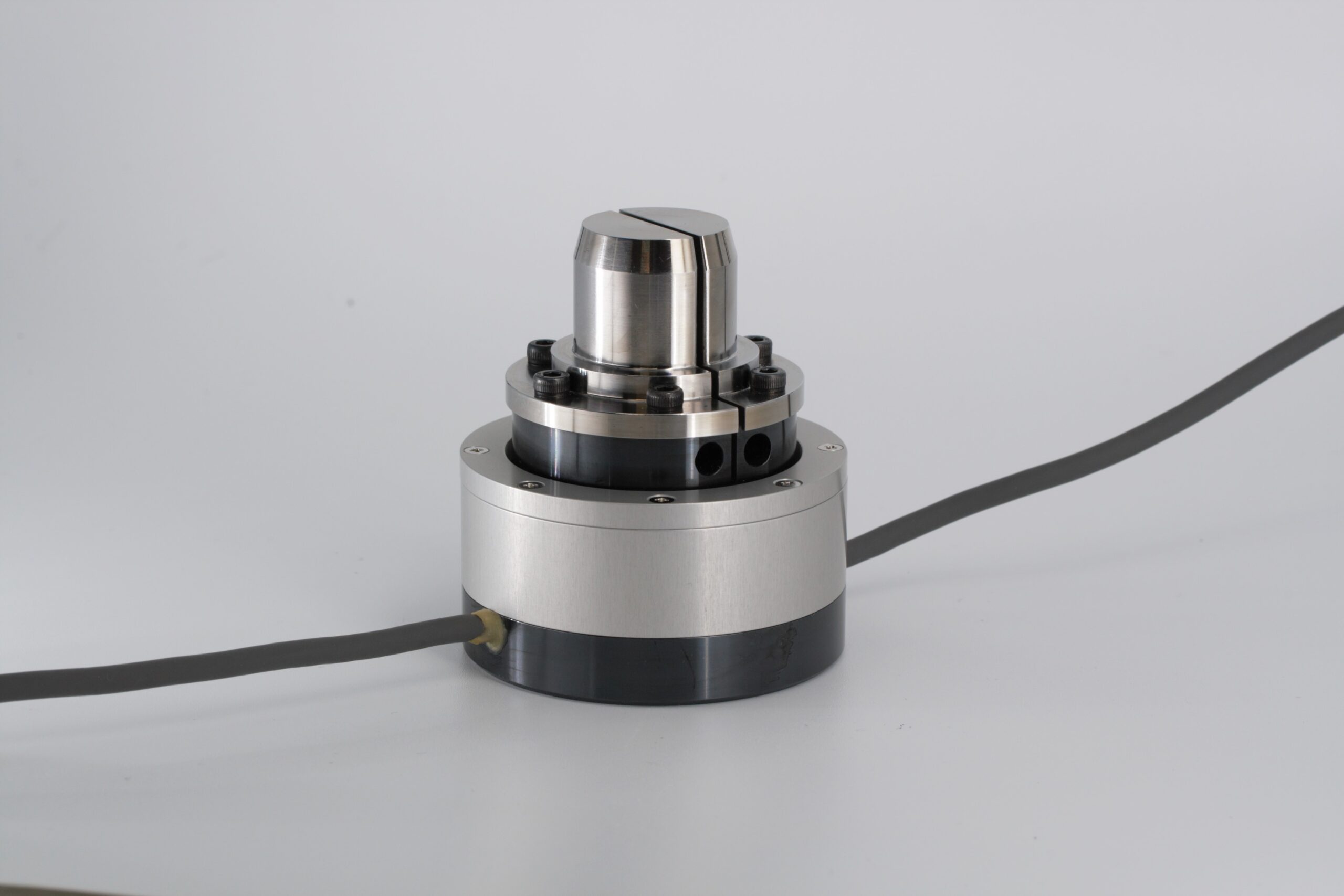

MTF1
-
Features
- Measures the tension of oil seals, O-rings, etc.
- Interchangeable measuring elements for different dimensions.
- Can also be customised for large diameter dimensions or high/low capacity tension measurement.
Appearance Dimensions
Model name, rated capacity and mass
| Model | Capacity | Weight | Number of divisions and outputs |
|---|---|---|---|
| MTF1-100NA | 100 N | 520 g | 2 divisions, 1 output |
| MTF1-200NA | 200 N | 520 g | 2 divisions, 1 output |
| MTF4-2KNA | 2 kN | 6.2 kg | 4 divisions and 4 outputs |
| MTF4-4KNA | 4 kN | 6.2 kg | 4 divisions and 4 outputs |
*Mass does not include cables.
*2 split 2 outputs and 4 split 4 outputs can also be manufactured.
*It is possible to produce the product with the requested rated capacity.
Specifications
| Safe Overload | 150 %RC |
|---|---|
| Rated Output | 1 mV/V±5 % |
| Nonlinearity | 0.1 %RO |
| Hysteresis | 0.1 %RO |
| Repeatability | 0.05 %RO |
| Excitation Voltage | 10 V (or less) |
| Safe Excitation Voltage | 15 V (or less) |
| Input Rsistance | 350 Ω |
| Output Rsistance | 350 Ω |
| Compensated Temp.Range | 0～60 ℃ |
| Safe Temp.Range | -20～80 ℃ |
| Temp.Effect on Zero | 0.02 %RO/℃ |
| Temp.Effect on Output | 0.02 %/℃ |
| Cable | MTF Type 1 Φ 4 mm – 4-conductor shielded 2 m with tip connector |
| MTF Type 4 Φ 6 mm – 4-conductor shielded 2 m with tip connector | |
| Attached connector | PRC03-12A10-7M |
