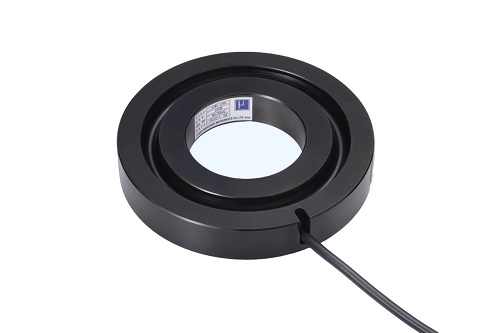

HCWB
-
Features
- High reliability. Washer type load cells of versatile applications.
- Abundant sales achievements. Low costs.
- A wide range of rated capacities (30kN to 500kN).
- Applications: Ejection type moulding machines and press machines. For measurement of tension in bolts.
- Accuracy class: 1%.
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit : mm)
| Model | Capacity | A | B | C | D | E | F | G | H | I | J/K | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCWB-30KN | 30 kN | 28 | 117 | 85 | 65 | 40 | 90 | 9.5 | 104 | 52 | M5,10 deep | 1.6 kg |
| HCWB-50KN | 50 kN | 28 | 155 | 124 | 102 | 72 | 128 | 9.5 | 140 | 87 | M6,12 deep | 2.5 kg |
| HCWB-100KN | 100 kN | 32 | 198 | 156 | 134 | 90 | 163 | 10 | 182 | 112 | M6,12 deep | 5.0 kg |
| HCWB-200KN | 200 kN | 40 | 220 | 180 | 156 | 110 | 186 | 12 | 196 | 132 | M6,12 deep | 7.2 kg |
| HCWB-300KN | 300 kN | 50 | 285 | 233 | 205 | 145 | 238 | 15 | 260 | 170 | M6,12 deep | 15 kg |
| HCWB-500KN | 500 kN | 50 | 335 | 285 | 255 | 200 | 290 | 15 | 310 | 230 | M6,12 deep | 18 kg |
* Items are produced only on order placed.
* Contact the manufacturer in regard to detailed dimensions.
Specifications
| Safe Overload | 150 %RC |
|---|---|
| Rated Output | 1 mV/V±1% |
| Nonlinearity | 1 %RO |
| Hysteresis | 1 %RO |
| Repeatability | 0.3 %RO |
| Excitation Voltage | 10 V (or less) |
| Safe Excitation Voltage | 15 V |
| Input Rsistance | 350 Ω |
| Output Rsistance | 350 Ω |
| Compensated Temp.Range | -10～60 ℃ |
| Safe Temp.Range | -20～80 ℃ |
| Temp.Effect on Zero | 0.01 %RO/℃ |
| Temp.Effect on Output | 0.01 %/℃ |
| Cable | Φ6mm-4wire shielded cable, length : 0.5ｍ |
| Attached connector | Jack / PRC03-32A10-7F |
| Attached cable | L-A-5、(Refer to transducer connections) |
